Photos shown are a representation of the appearance of components in a kit with options.

Actual product & finish may vary for your application.

1965-1983 AMC Front Disc Brake Kit

1965-1983 AMC Front Disc Brake Kit



Our Kit Does Both Sides of the Axle, and Includes: Brackets, Grade 8 Mounting Hardware, 11 1/4" Vented Rotors, Calipers with 18" Stainless Flexible Lines.

Front Disc Brake kits are Only Sold as Complete Kits


Kit Options Allow You to Upgrade Your Kit to Include:

  • Calipers with Pads in Raw or Powder Coated Finish
  • Black Powder, Red Powder coated brackets or Raw Metal

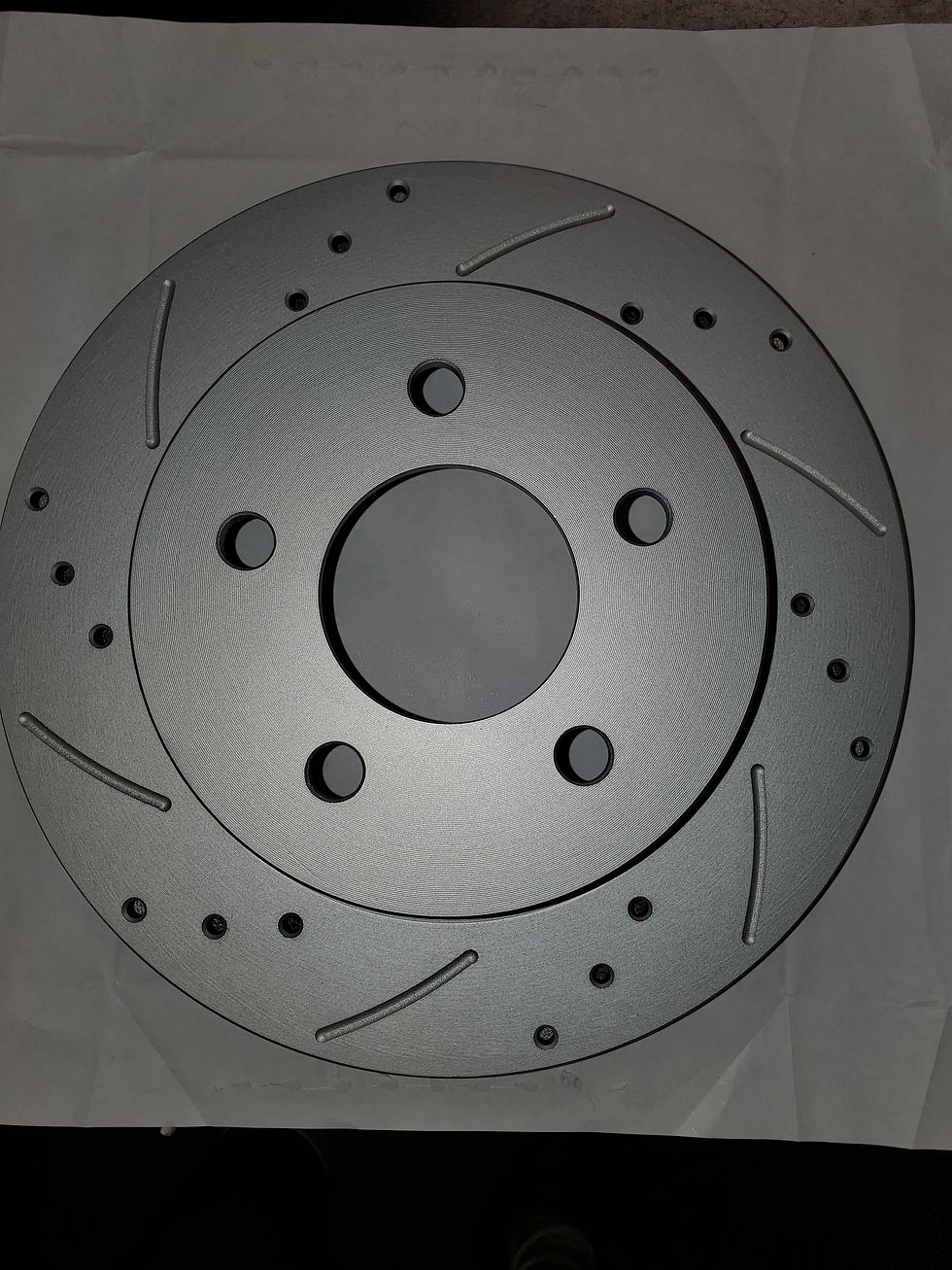

  • Performance Dimpled and Slotted Rotors


Disc / Drum Applications.

  • You need a Dual reservoir master cylinder that is Disc / Drum. If you already have that you may need to change your proportioning brake valve to Disc/Drum.
  • If you are running the master cylinder on the frame rails. You will need the above along with 2lb residual valve to the front brakes (generally 2 one for each line) and 1- 10lb to the rear drum brakes.
  • Master Cylinders can be found HERE

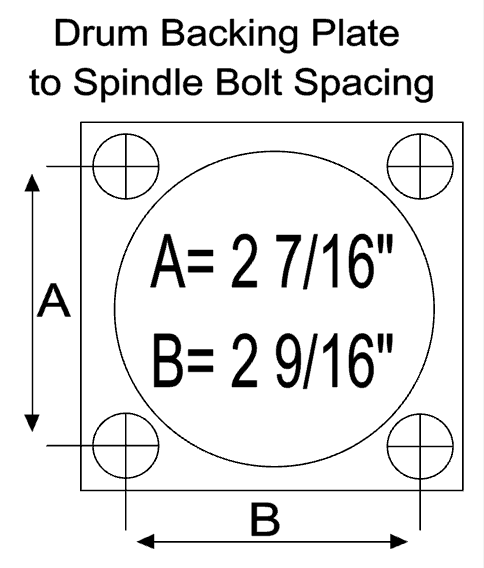

  • To verify you are ordering the correct kit, measure your drum backing plate bolt hole spacing center to center on either your spindle/axle housing flange and compare to our spacing diagram.
  • Fits most 15 Inch and Larger Disc Brake (not drum) Style Wheels.
  • Will NOT fit 14" wheels. ​
  • Only fits 5 x 4 1/2" Wheel Lug Pattern
  • Save your original hubs & bearings. Our rotor slips over your stock hubs.
  • When converting from drum to disk. You will need to cut and re-flair your existing hard brake line or bend new ones. These are not supplied.
  • If you have the spindle with a .890 base you will have to either machine it to .520 or get the .520 spindles.
