1969-Mid 1973 Jeep J-20 Rear Disc Brake Kit

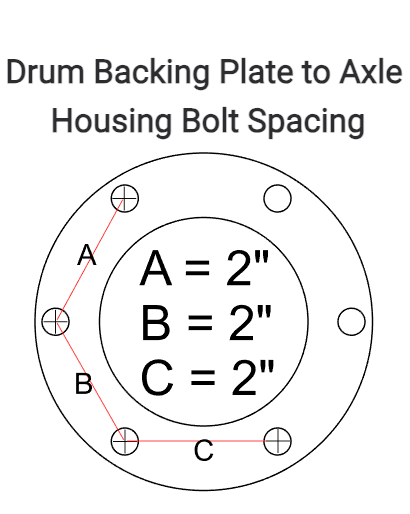

*** Before ordering, you need to measure the axle flange bolt spacing. This is the part of the axle housing the drum brake backing plate bolts to.*** Compare to the diagram above in the pictures.***
Our Standard Kit Does Both Sides of the Axle, and Includes:
- Brackets, Grade 8 Mounting Hardware, Park Brake Housing Extension,
and 11 9/16" Vented Rotors.
Kits With Calipers Does Both Sides of the Axle, they include the above
- Kits that are ordered with the parking brake style calipers also include the flexible stainless steel brake lines, and cable housing extension tubes.
- Kits with non-parking brake calipers come with flexible stainless steel brake lines.
Kit Options Allow You to Upgrade Your Kit to Include:
- Calipers with Pads in Raw or Powder Coated Finish
- Black Powder, Red Powder coated brackets.
- Performance Dimpled and Slotted Rotors
Disc/ Disc Applications.
- IF you have ABS you shouldn’t need to do anything else providing the ABS system is working properly.
- Applications PRE-ABS running Disc/Disc brakes. The kit works with the stock master cylinders, if you are wanting a better pedal feel; the master cylinder needs to be changed out for a master cylinder made for disc/disc applications.
- We sell these master cylinders please see the link on this page.
Important Note for Installation
Master Cylinders & Boosters
- To verify you are ordering the correct kit, measure your drum backing plate bolt hole spacing center to center on either your spindle/axle housing flange and compare to our spacing diagram.
- Fits most 15 Inch and Larger Disc Brake (not drum) Style Wheels.
- Only Fits 5 x 5 1/2" Wheel Lug Pattern.
- When converting from drum to disk. You will need to cut and re-flair your existing hard brake line or bend new ones. These are not supplied.
